- 29 full suspension ebike frame
- 12*148mm Boost thru axle
- Bafang M510/M560 mid motor
- Bafang BT F03 or BT F04 battery
- 185*55mm trunnion mount rear shock size
- 29"*2.35" or 650B*2.8" tire clearance
Item No :

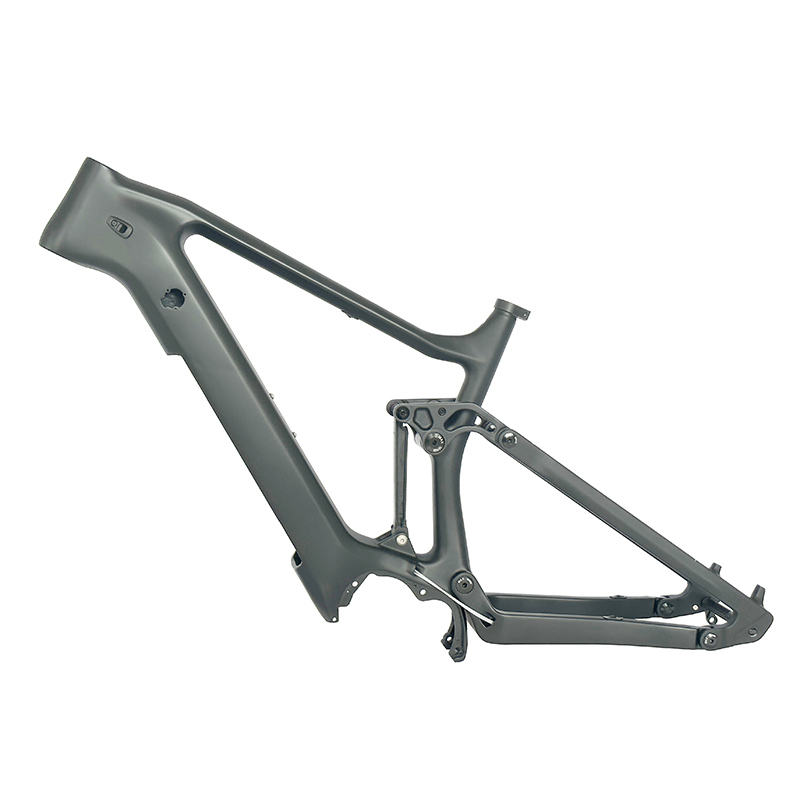

E04Carbon Ebike Bafang Full Suspension Electric Bike Frame
QYH CARBON Frame E04 is a Full Suspension E-MTB Carbon Frame. Work with 29"*2.35" tire and with a longer rear travel 150mm. The E04 frame is compatible with bafang M510 & M560 motor systerms. The downtube is designed with BAFANG BT F03.450Wh or BT F04.600Wh internal battery. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 150mm rear travel. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.
Product Specification:
| Frame | Carbon Ebike Bafang Full Suspension Electric Bike Frame |
| Brake | Post Mount Disc Brake |
| Size | 17.5" / 19" / 21" |
| Motor | Bafang M510 & M560 Mid Motor |
| Battery | Compatible with Bafang BT F03.450Wh & Bafang BT F04.600Wh |
| Headtube | Tapered 1-1/8", 1-1/2", Upper 44mm, Lower 55mm (Headset Standard FSA No.57E) |
| Seatpost | φ31.6mm (35mm Seat Clamp) |
| Max Tire Clearance | 650B*2.8" / 29"*2.35" |
| Weight | 3600g±50g (17.5") |
| Rear Shock Size | 185mm*55mm (22*10φmm，54*M10*P1.0) |
| Rear Travel | 150mm |
| Test Stanard | ISO4210 |
| Warranty | 2 Years |
