New Aero Carbon Road Disc Brake Frame

Perfect for: Aero Road Bike Rider.

Tires: Designed to work with 700C*28C tire.

Cable routing: Compatible Full internal cable routing.

Disc Brake: Flat mount disc brake mount, 140mm disc rotor.

Groupset: Mechanical and Di2 groupset compatible.

Material: Full carbon

  • Item No :

    R02-F

New Aero Carbon Road Disc Brake Frame

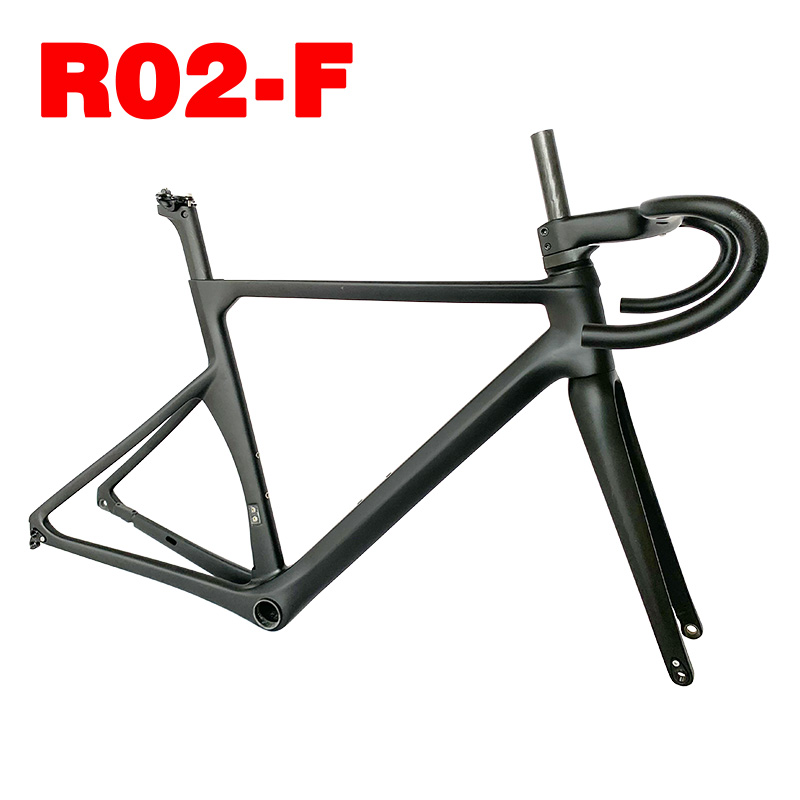

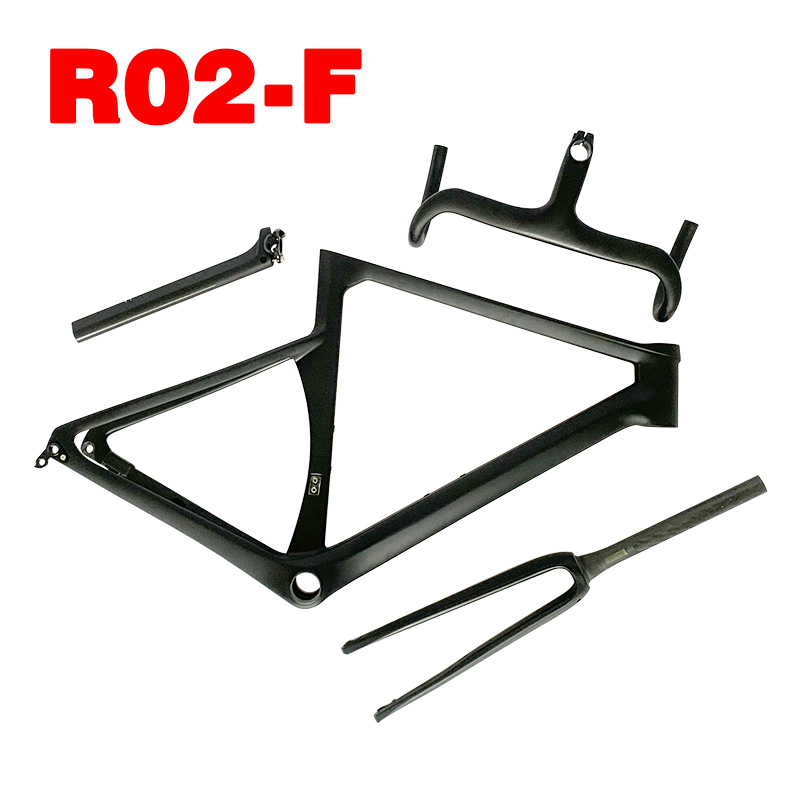

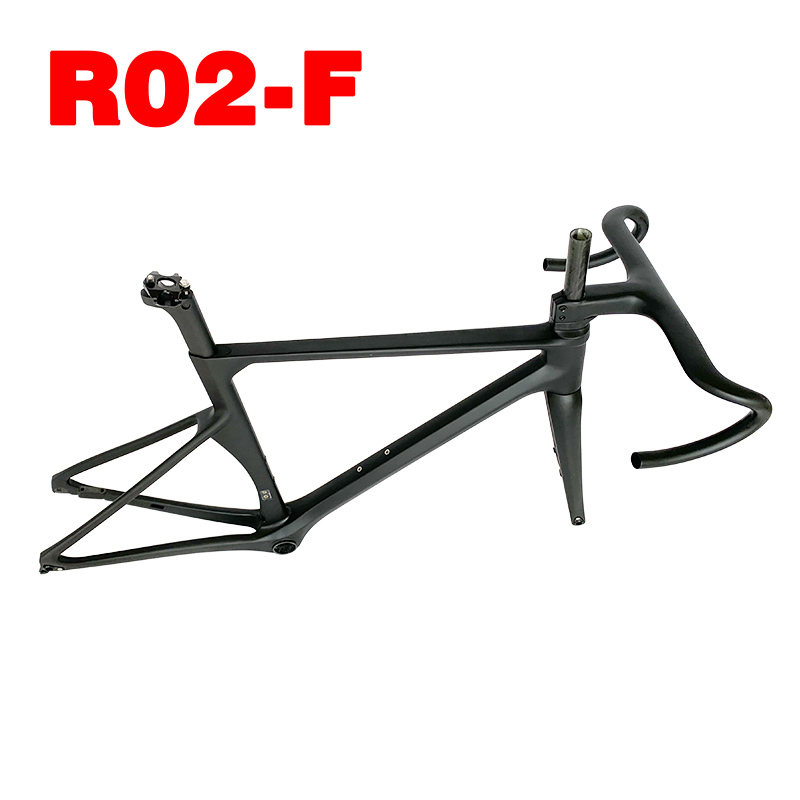

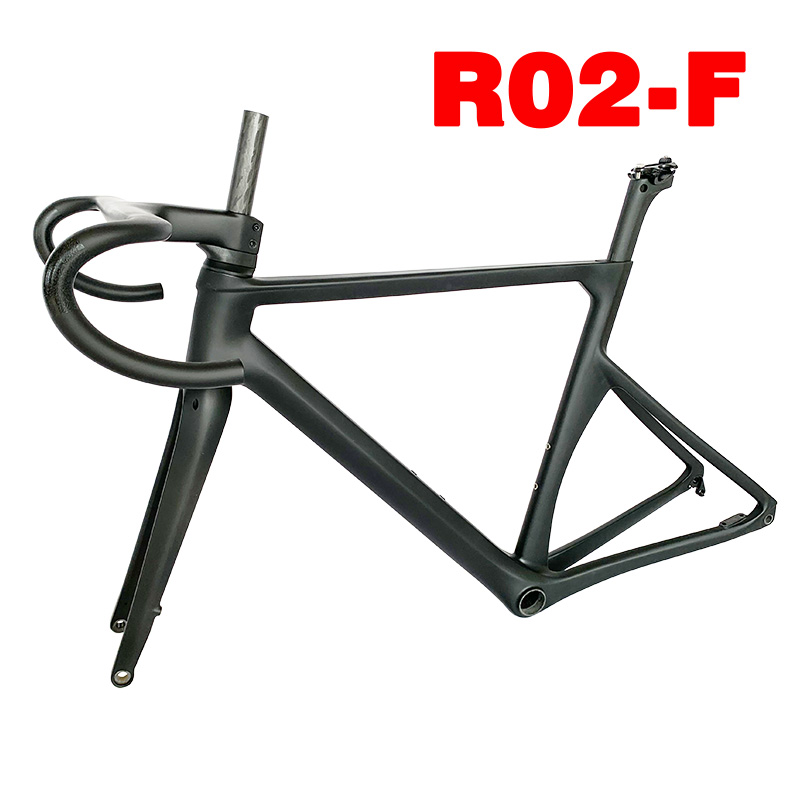

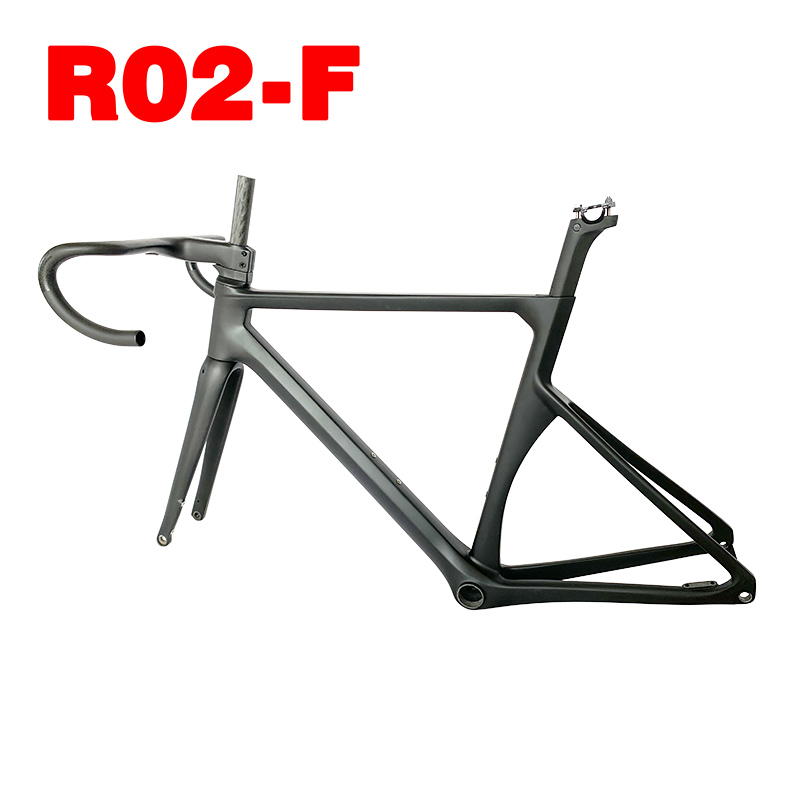

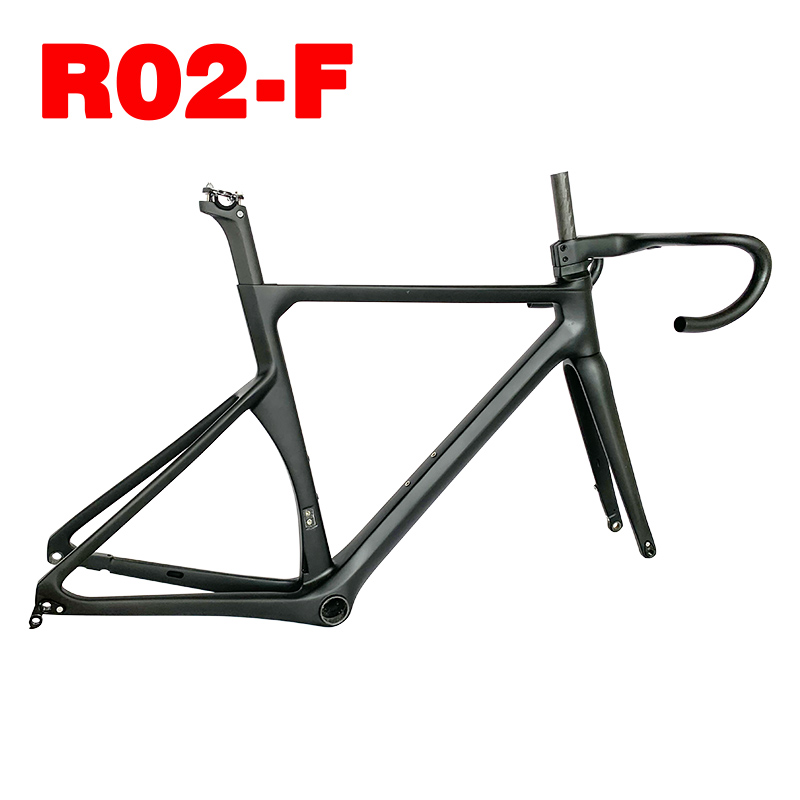

QYH CARBON Bike Frame R02-F is a 700Cx28C Disc Brake Carbon Raad Bike Frame. Light weight full carbon fiber construction and full internal cable routing means it stronger and comfortable for riding. The Max tire is 32C, compatible with mechanical and Di2 groupset. The aero frameset design elegantly integrates fork, stem, handlebar and seatpost. And Full integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.

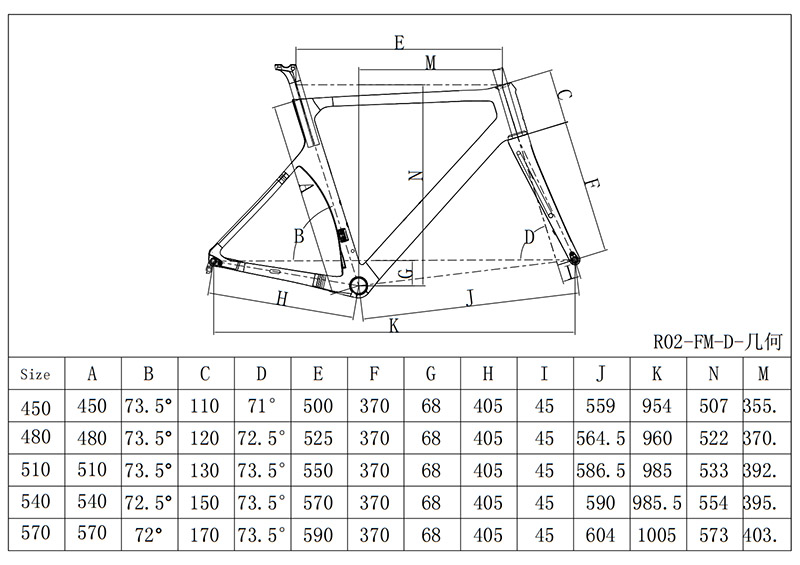

Product Specification:

Frame New Aero Carbon Road Disc Brake Frame
Size 450 / 480 / 510 / 540 / 570mm
Fork QTOUR F03-F
Handlebar width HR03 or HR05
Weight 1050g±50g (480mm)
Seatpost Specify Seatpost P02
Bottom bracket Press Fit BB86
Max tire clearance 700C*28C
Brake mount type Flat mount Disc brake 140mm
Dropout  Front 12*100mm Thru Axle, Rear 12*142mm Thru Axle
Test Standard ISO4210
Warranty 2 Years

New Aero Carbon Road Disc Brake Frame
